Basic PTO switch wiring logic (all mowers)
A PTO switch controls two core jobs:
-
Engage/disengage the electric PTO clutch (blade power)
-
Integrate safety interlocks (seat, reverse, brake, starter inhibit)
Power path:
Battery → Ignition → PTO Switch → PTO Clutch/Relay → Safety Modules → Ground

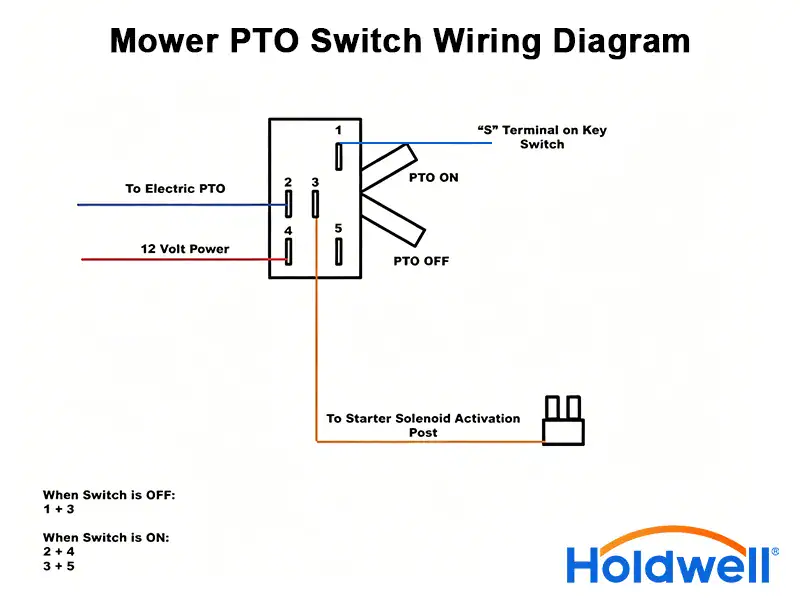

5 Pin mower PTO switch wiring diagram (most common)
Standard terminal labeling: 12V IN | PTO Clutch | Ground | Safety Interlock | Starter Interlock
|
Terminal |
Function |
Common Wire Color |
Connection |
|
Pin 1 |
12V Power In |
Red |
Ignition switch (12V when key ON) |
|
Pin 2 |
PTO Clutch Output |
Green/White |
PTO clutch coil or PTO relay |
|
Pin 3 |
Ground |
Black |
Chassis ground |
|
Pin 4 |
Safety Interlock (Seat/Reverse) |
Yellow |
Seat switch / RCM module |
|
Pin 5 |
Starter Interlock |
Orange |
Starter solenoid (prevents start with PTO ON) |
Wiring steps:
-
Disconnect battery negative
-
Red → Pin1 (12V IN)
-
Green/White → Pin2 (Clutch)
-
Black → Pin3 (Ground)
-
Yellow → Pin4 (Safety)
-
Orange → Pin5 (Starter inhibit)
-
Test PTO engage/disengage & safety interlocks
8 Pin PTO switch wiring diagram
Used on Delta, Bobcat, Cub Cadet, commercial zero‑turns.
|
Pin |
Function |
Typical Wire |
Purpose |
|
1 |
12V Battery + |
Red |
Constant power |
|
2 |
Ignition 12V |
Pink |
Key‑switched power |
|
3 |
PTO Clutch Output |
Green |
To clutch coil |
|
4 |
PTO Relay Latch |
White/Black |
Self‑hold relay circuit |
|
5 |
Seat Safety |
Yellow/Black |
Seat switch interlock |
|
6 |
Reverse Safety |
Blue |
Reverse cut‑off |
|
7 |
Brake Interlock |
Orange |
Brake/PTO starter lock |
|
8 |
Ground |
Brown |
Chassis ground |
Brand‑specific PTO switch wiring from Holdwell fitments
Delta PTO switch wiring
-
Series 6201 / 6204 use 5‑pin & 8‑pin
-
Sealed IP67; color code matches above
-
Direct plug‑and‑play for most tractors & zero‑turns
Bobcat PTO switch / Bobcat mower PTO switch
-
Mostly 8‑pin heavy‑duty
-
Vibration‑resistant contacts
-
Match OEM part numbers for correct pinout
John Deere PTO switch wiring
-
Most models: 5‑pin
-
Common part numbers: AM147972, AM101562, AM133837
-
Holdwell john deere pto switch replacement plugs straight into factory harness
-
Safety circuits fully restored
Safety wiring rules (critical!)
-
Never bypass safety interlocks (seat, reverse, brake)
-
Always use inline 10–15A fuse for PTO circuit
-
Bad grounding = intermittent PTO & clutch burnout
-
Loose connections cause heat, melted plugs, switch failure
How to test your wiring?
-
Key ON, PTO OFF: Pin1 = 12V; Pin2 = 0V
-
Key ON, PTO ON: Pin1 = 12V; Pin2 = 12V (clutch activates)
-
If no 12V at Pin2: bad switch, broken wire, or blown fuse
-
If clutch chatters: weak ground or failing switch
Why use Holdwell PTO switches?
-
Exact pinout & wire match for mower pto switch
-
OEM‑grade terminals prevent melting & shorts
-
Protects your PTO clutch from damage
-
Plug‑and‑play for Delta, Bobcat, John Deere, Cub Cadet
Conclusion
This mower pto switch wiring diagram works for most residential & commercial mowers. Always cross‑check your model’s schematic. For a perfect‑fit replacement with correct wiring harness, choose Holdwell.
